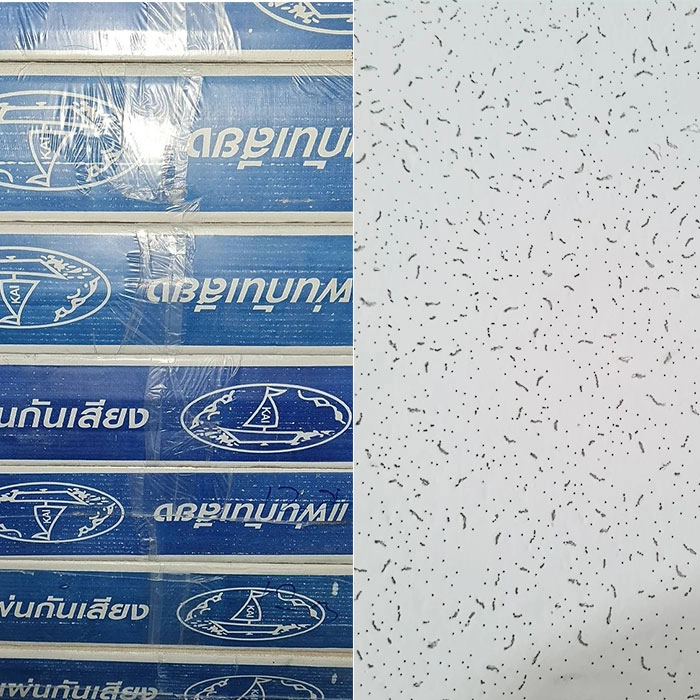

แผ่นอคูสติคกันเสียง ตราเรือใบ
สําหรับดูดซับเสียงสําหรับอาคารบ้านพักอาศัยหรือสํานักงาน
แผ่นอคูสติคกันเสียง ตราเรือใบ เป็นวัสดุอคูสติคสําหรับฝ้าหรือผนังดูดซับเสียง สามารถดูดซับเสียงและกันความร้อนได้ดี ไม่โก่งงอหรือแอ่นตัว แผ่นเรียบเสมอกันติดตั้งได้ง่ายกับโครงฝ้าทีบาร์เหมาะสําหรับห้องประชุม ศูนย์การค้า บ้านพักอาศัย
KS Acoustic Materials for Ceiling or Wall Sound Absorption These panels offer excellent sound absorption and thermal insulation, ensuring reliable performance without warping or bending. With a smooth, flat surface, they are easy to install with T-bar ceiling grids. Ideal for meeting rooms, shopping centers, and residential spaces.
คุณลักษณะและประโยชน์ แผ่นอคูสติคกันเสียง ตราเรือใบ Features and Benefits

ค่าดูดซับเสียงทีสูง
มีค่าดูดซับเสียงถึง NRC 0.55 ทําให้เหมาะกับสํานักงานหรือห้องประชุมที่ต้องการลดเสียงภายใน
With perforation technology, intricate patterns are created to help reduce unwanted noise. Factory-applied
coating eliminates the need for additional painting, allowing for immediate installation.

ไม่โก่งงอ แอ่นตัว
แผ่นไม่โก่งงอ สามารถคงรูปและมีนํ้าหนักเบา ติดตั้งง่าย
The panels are warp – resistant, retain their shape, are lightweight, and easy to install

ทําให้พืนทีสว่าง
แผ่นอคูสติคกันเสียง ตราเรือใบ ด้วยคุณลักษณะสีทําให้พื้นที่ห้องดูสว่าง ช่วยให้การออกแบบ
ความสว่างเป็นเรื่องที่มีประสิทธิภาพมากขึ้น
Acoustic soundproof panels enhance room brightness with their color characteristics, making lighting designmore efficient and effective

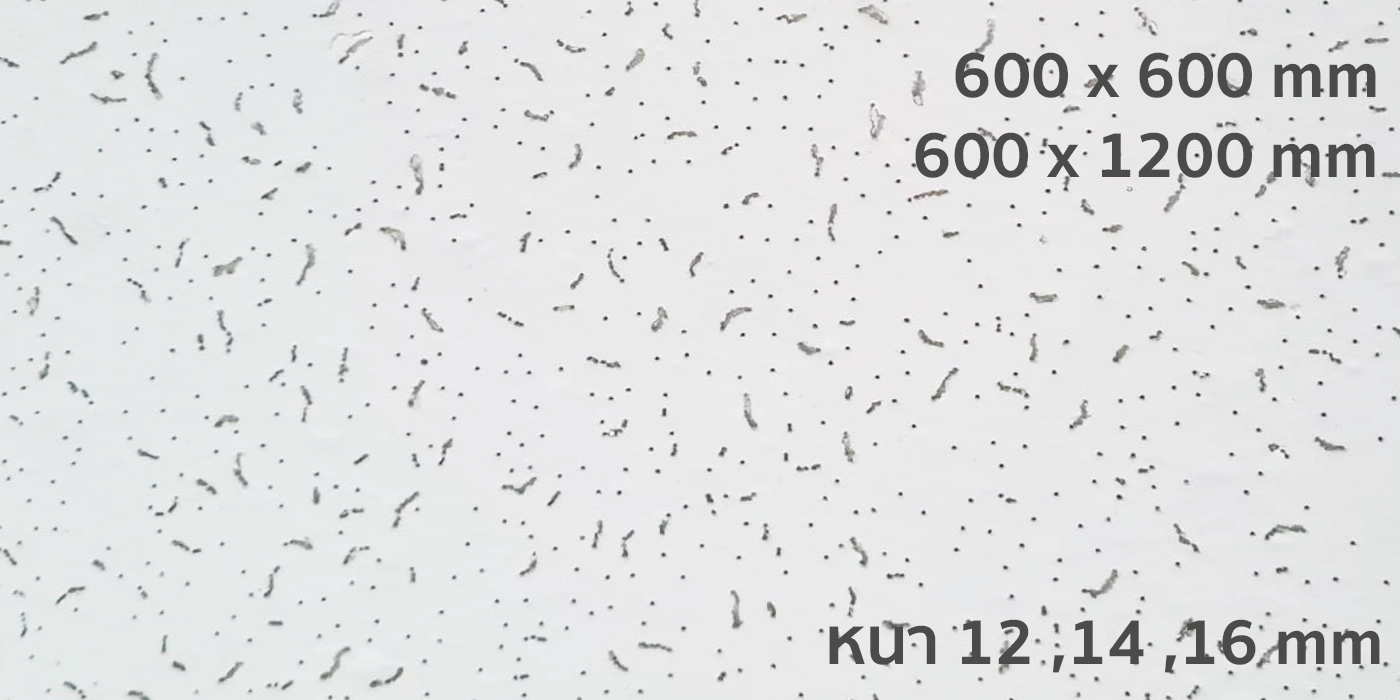

รายละเอียด สินค้า
| สินค้า | ความหนา | ขนาด |
|---|---|---|
|
KS-401 Acoustic |
12 มม. 14 มม. 16 มม. |
600×600 มม. 600×1200 มม. |
| การทดสอบ | หน่วยวัด | ผลการทดสอบ | ชื่อผลการทดสอบ |
|---|---|---|---|
| ค่าความชื้น | % | 0.5 | GB/T 25998-2010 6.3 |
| ค่าการดัดงอ | N | 161 | GB/T 25998-2010 Appendix C |
| ค่าทนต่ออุณหภูมิ | (mm*K)/W | 0.25 | GB/T 10295 – 2008 |
| ค่าลดเสียงรบกวน | / | 0.34 | GB/T 18696.1 – 2004 |
ข้อมูลเฉพาะทาง
วัสดุ : Mineral Wool
ผิวเคลือบ : Factory-Applied Vinyl Latex Paint
NRC : 0.55
CAC : 33 (Minimum)
Sound Absorption : EN2014-1994
Light Refectivity : LR 0.80
Insulation Value : Average R Factor (at 750F, 24) is 1.6 (BTU Units),0.28 (Watt Units)
Fiber Content : >=90%
Water Content : <=3%
Non – Asbestos : Non-Asbestos
Density : 240-280 kgs/m3

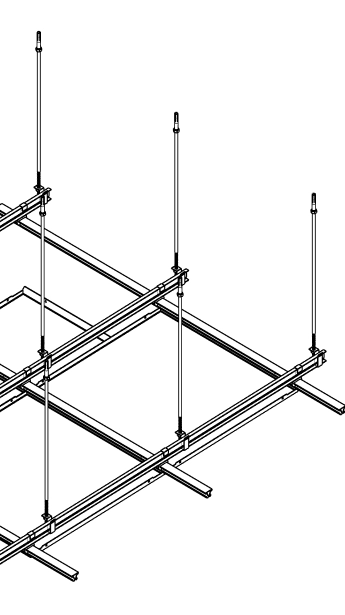

การติดตั้ง Installation
- เลือกประเภทและขนาดแผ่นให้เหมาะสมกับการใช้งาน
Select the appropriate type and size of the sheet to suit the intended
application - วางแผ่นบนระบบโครงคร่าวทีบาร์และล็อคด้วยคลิ๊บล็อคเพื่อกันการ
กระพือจากแรงลมหรือแรงภายนอก
Place the sheet on a T-bar grid system and secure it with clip locks to
prevent movement caused by wind. - หากต้องการติดตั้งระบบฝ้าฉาบเรียบ ให้ติดตั้งระบบฝ้าเดิมให้เรียบร้อย
เสียก่อน
For a seamless ceiling system, ensure the original ceiling system is fully
installed first. - นําแผ่นอคูสติคติดตั้งทับบนแผ่นฝ้าเดิมโดยยึดโดยการทากาวหรือยิง
แม็กใหเครบรอบด้าน
Install the acoustic panel over the existing ceiling by securing it with adhesive
or staples around all edges. - ระบบผนังสามารถใช้วิธีเดียวกัน และยังช่วยเพิ่มประสิทธิภาพในการลด
เสียงให้ดียิ่งขึ้นด้วย
The same method can be applied to wall systems, which will also enhance
soundproofing performance.
ข้อควรระวัง Precautions
- ไม่ควรให้แผ่นโดนละอองนํ้าหรือความชื้นโดยตรง ควรเก็บในที่แห้ง
Avoid exposing the sheet directly to water spray or moisture. Store it in a dry place. - ติดตั้งเฉพาะภายในอาคารเท่านั้น
Please ensure installation is limited to indoor areas only - ไม่ควรติดตั้งในพื้นที่ที่สัมผัสกับอุณหภูมิภายนอกโดยตรง
It is recommended to avoid installation in areas directly exposed to external temperatures. - ห้องที่ใช้ติดตั้งอุณหภูมิไม่ควรเกิน 35 องศาเซลเซียส
The installation room should not exceed a temperature of 35°C - ควรติดตั้งแผ่น หลังจากการเก็บงานเปียก เช่น การฉาบปูนทุกชนิด ให้เสร็จเรียบร้อยและแห้ง
สนิทแล้ว
The sheet should be installed after all wet works, such as plastering, and completely dry.
